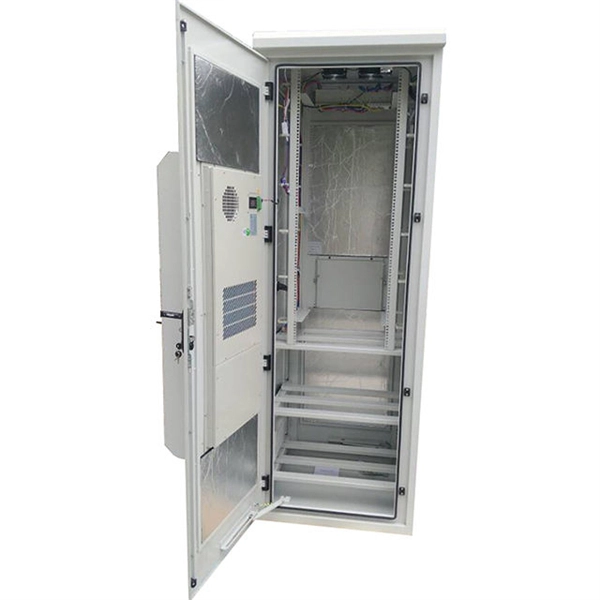

Waterproof distribution box wiring method

Proper wiring in a waterproof distribution box requires insulated connections, secure cable entry with glands, and correct neutral wire separation to maintain IP65/IP66 protection and electrical safety.

Box Preparation and Mounting

Select the appropriate box based on project requirements, environmental conditions, and IP rating (IP65 or IP66) to ensure protection against dust and water jets. Inspect the box for damage, intact door locks, and complete internal components before installation. Mounting methods include wall-mounted, floor-mounted, or hanging installation.

Use expansion bolts with rubber sealing washers for wall or floor mounting, ensuring the box is level and stable. Cable entry points should be pierced at pre-molded knockout holes, and cable glands must compress at least 10% of the cable diameter to prevent water ingress.

Wiring Inside the Box

Insulation and secure connections: All connecting wires must be fully insulated, and joints should be tight to avoid loose connections or exposed live parts. Neutral wire handling: Connect the neutral wire through a dedicated terminal board and ensure it is separated from other terminals to prevent accidental contact or short circuits. Component mounting: Use DIN rails or mounting plates to secure circuit breakers, terminal blocks, and other devices.

Molded mounting pillars help isolate components from condensation on the back wall. Cable routing: Route cables neatly to avoid sharp bends or stress points. Ensure that cables entering the box are sealed with appropriate glands and gaskets to maintain waterproof integrity.

Sealing and Protection

Gasket compression: Ensure the lid gasket is fully compressed when closing the box to maintain the IP rating. Improper compression can allow water penetration and UV degradation over time. Fastener torque: Check and re-torque mounting bolts periodically, especially in outdoor or high-altitude environments, to prevent loosening due to thermal cycling.

Environmental considerations: For coastal or high-UV areas, use corrosion-resistant fasteners (e.g., stainless steel 316L) and UV-resistant gaskets (EPDM or silicone) to extend service life.

Testing and Verification

After wiring, perform electrical tests including insulation resistance, grounding continuity, and current verification to ensure safe operation. Confirm that all connections are secure, and the box maintains its waterproof integrity before energizing the system. By following these steps, you ensure that the waterproof distribution box is safely wired, protected from moisture and dust, and compliant with IP65/IP66 standards, reducing the risk of electrical faults and extending the service life of the installation.
