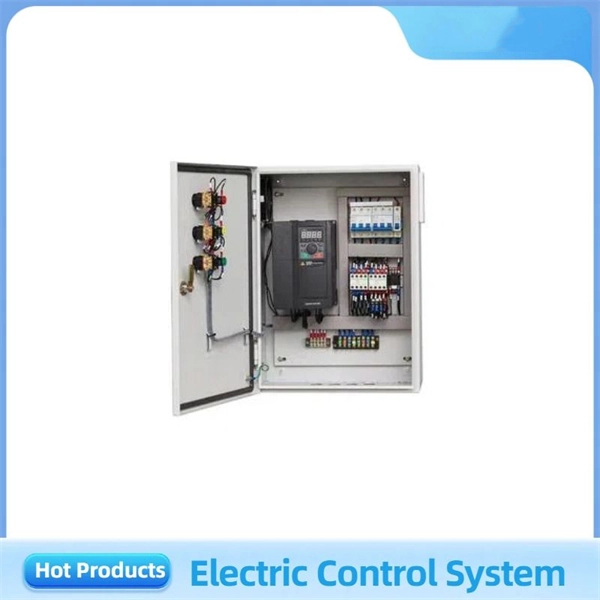

Installation of 2-way secondary distribution box

A 2-way secondary distribution box (subpanel) allows safe, localized power distribution from the main panel to multiple circuits, requiring proper grounding, correct wire sizing, and adherence to electrical codes.Purpose and Planning

A secondary distribution box, or subpanel, functions as a downstream power distribution point from the main electrical panel, dividing a single feeder into multiple circuits closer to the load ( ). It is commonly used for high-demand appliances, workshops, or separate buildings. Before installation, determine the load requirements, distance from the main panel, and number of circuits needed. This ensures proper wire sizing and breaker selection.

Location and Mounting

• Install the box in a dry, accessible area with good ventilation, avoiding damp or excessively hot locations ( ).
• Maintain clear working space: at least 3 feet in front, 30 inches wide, and 6.5 feet high, as per NEC Article 110.26 ( ).
• Mount the box at a convenient height, typically around 1.5 meters (5 feet), ensuring it is out of reach of children ( ).
• Secure the box to a stud or solid wall using appropriate mounting hardware.

Wiring and Connections

• Connect the subpanel to the main panel using a feeder cable with the correct amperage rating for the expected load ( ).
• Ensure proper grounding and bonding to prevent electrical shocks and safely redirect faults ( ).
• Inside the box, organize wiring neatly using DIN rails, busbars, and terminal blocks for clarity and safety ( ).
• Each circuit should have its own breaker or fuse, and surge protection is recommended for sensitive equipment.

Safety and Compliance

• Use UL/CE-certified components and follow NEC, IEC, or local electrical codes ( ).
• Perform visual inspections and multimeter tests before powering on to verify correct connections and grounding ( ).
• Schedule regular maintenance and inspections to ensure long-term reliability.

Additional Considerations

• For separate buildings, ensure the subpanel is properly bonded to the main system and that wire gauge accounts for distance and load ( ).
• Label all circuits clearly for easier troubleshooting and future upgrades ( ).
• If unsure about installation, consult a licensed electrician to ensure safety and code compliance ( ). By following these guidelines, a 2-way secondary distribution box can provide safe, efficient, and reliable power distribution for residential or small commercial applications.
