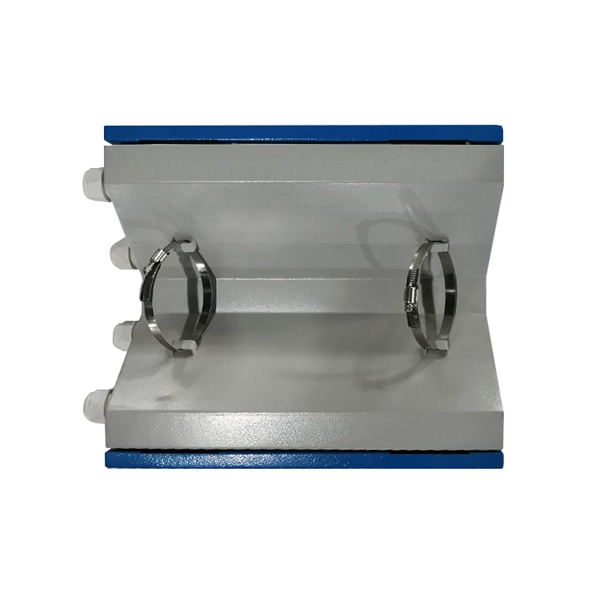

Explosion-proof 5-circuit distribution box

A 5-circuit explosion-proof distribution box is a flameproof electrical enclosure designed for safe power distribution in hazardous areas, compliant with ATEX and IECEx standards.

Overview

A 5-circuit explosion-proof distribution box is engineered to safely distribute electrical power across five separate circuits in environments with explosive gases or combustible dust. These boxes are typically used in oil refineries, chemical plants, offshore platforms, gas stations, and metal processing facilities where safety is critical.

Construction and Materials

Enclosure: Usually made from stainless steel, aluminum alloy, or glass-reinforced polyester (GRP) to resist corrosion, moisture, and mechanical impact. Flameproof Design: The enclosure features a flameproof structure (Ex d IIB+H2) that prevents internal sparks or arcs from igniting the surrounding atmosphere. Sealing: Advanced sealing technologies, such as cast-in-place foaming, ensure high protection against dust and water ingress.

Hinges and Panels: Specialized hinge structures prevent damage to flameproof joints during opening and closing, extending service life.

Electrical Components

The box can accommodate a variety of electrical devices, including: Miniature Circuit Breakers (MCB) and Molded Case Circuit Breakers (MCCB) for overcurrent protectionAC contactors, thermal relays, and soft starters for motor controlPower meters, ammeters, voltmeters, and surge protectorsControl transformers, PLCs, and frequency convertersFuses, terminals, bus bars, and light-operated switches Each circuit typically includes a power-on signal indicator for operational monitoring. Certifications and StandardsATEX and IECEx certified for use in Zone 1, 2, 21, and 22 hazardous areas. Compliant with IEC international standards for explosion-proof electrical equipment.

Optional certifications from TUV, DNV, CSA, and other agencies may be available depending on the manufacturer.

Installation and Customization

Can be installed vertically or horizontally, with mounting brackets for secure placement. Cable entry: Standard M ☐ x 1. 5 plugs or NPT plugs on request.

Customization: Number of circuits, enclosure size, and internal components can be tailored to meet specific industrial requirements.

Applications

Industrial power distribution in hazardous areasMotor control and protectionLighting and socket distribution in explosive atmospheresControl systems for chemical, pharmaceutical, and offshore operations A 5-circuit explosion-proof distribution box ensures safe, reliable, and compliant electrical distribution in environments where standard electrical equipment could pose a fire or explosion risk.
