RRU also needs to be plugged into a light module

Fiber and communications infrastructure knowledge brief Published 27 Jan 2021

Prepared for preliminary research by the ALFA PRO knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Yes, the RRU must be connected to a light (optical) module to enable communication with the BBU/DU and ensure proper operation.

Optical Connection Requirement

The RR

U, such as Huawei's RRU5517t or similar models, includes an optical fiber port at its bottom panel, which is used to connect the RRU to the baseband unit (BBU) or distributed unit (DU) via fiber optic cables. This connection is essential for transmitting digital baseband signals between the RRU and the BBU/DU. Without plugging the optical module into the RRU, the unit cannot send or receive data, and the system will not function correctly.

Installation Considerations

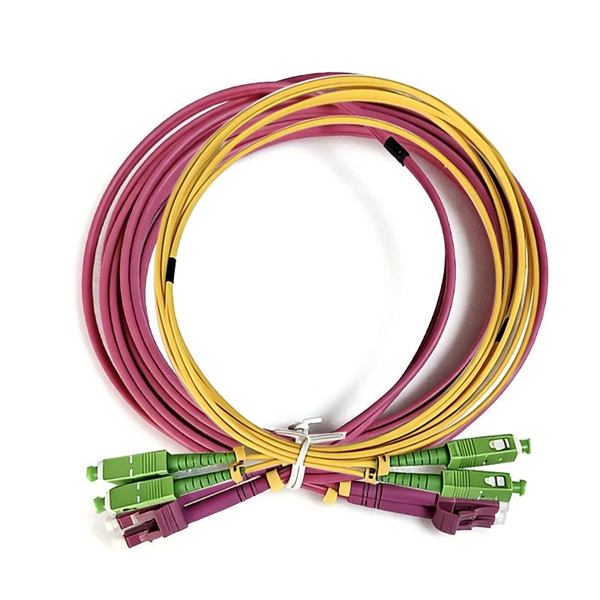

Use field optical cables designed for outdoor environments, which are tension-resistant, flexible, oil- and wear-resistant, and flame-retardant. Quick-lock connectors are typically used to plug the fiber into the RRU's optical module, allowing for secure and repeatable connections. Ensure the optical module is powered on and properly seated; an unpowered or disconnected optical module will prevent the RRU from communicating with the BBU/DU.

The optical connection is part of the RRU's bottom panel ports, along with RF and power ports, and must be installed according to the manufacturer's guidelines to maintain system reliability.

Auxiliary Devices and Monitoring

Some RR

Us work with monitoring extension boxes (MEBs) or other auxiliary devices, which may also interface through the optical module for status reporting and control signals. Proper optical connection ensures that these monitoring functions operate correctly.

Summary

To operate an RRU correctly: Connect the optical fiber cable to the RRU's optical module. Ensure the module is powered and secured. Verify connectivity with the BBU/DU and any auxiliary monitoring devices.

Failing to plug the RRU into the light module will prevent data transmission and may disrupt the base station's operation.
