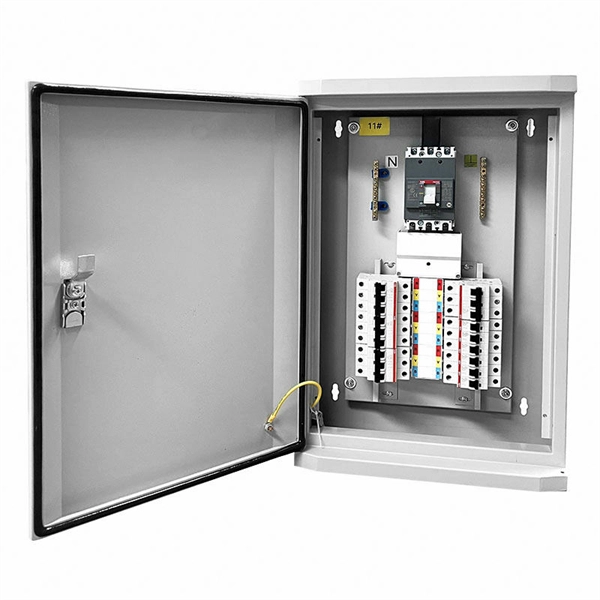

Electrical Distribution Box Equipment and Main Materials

Distribution boxes are commonly made from metals like steel and aluminum or plastics such as polycarbonate and fiberglass, chosen based on strength, insulation, fire resistance, and environmental conditions.

Metal Enclosures

Steel and aluminum are widely used for industrial and outdoor applications due to their strength, durability, and impact resistance. Steel is particularly robust, making it suitable for harsh environments like factories or outdoor installations, while aluminum is lighter, corrosion-resistant, and easier to handle in damp or wet locations. Metal boxes also provide electromagnetic interference (EMI) shielding, protecting sensitive electrical components.

Stainless steel or galvanized steel is preferred in corrosive environments, including marine or chemical settings, for long-term durability and rust prevention. For safety, metal boxes often include insulation linings to prevent electrical shock and maintain proper insulation for internal components.

Plastic Enclosures

Plastics such as polycarbonate (PC), fiberglass-reinforced plastic, and thermoset plastics (SMC) are commonly used for residential, light-duty, or indoor applications. These materials are lightweight, shatter-resistant, and electrically insulating, reducing the risk of electric shock. Plastics can also be UV-stabilized for outdoor use, preventing brittleness, discoloration, or cracking from prolonged sun exposure.

Polycarbonate and fiberglass are inherently flame-retardant, providing fire resistance for electrical components that may overheat or spark.

Key Material Considerations

Fire and Heat Resistance: Materials must resist burning and maintain structural integrity under high temperatures to prevent fire hazards. Metal boxes may include flame-resistant coatings, while plastics like polycarbonate and fiberglass are naturally flame-retardant. Electrical Insulation: Plastic enclosures provide excellent insulation, while metal boxes require additional linings to prevent accidental contact with live components.

I

P Ratings: The Ingress Protection (IP) rating indicates resistance to dust and water. Outdoor or wet environments require higher IP ratings (e.g., IP65 or IP66) to ensure protection against moisture and contaminants. Environmental Resistance: For outdoor or corrosive environments, materials must withstand UV radiation, moisture, and chemical exposure.

Stainless steel, coated metals, and fiberglass-reinforced plastics are ideal for these conditions. Mechanical Strength: High-impact resistance ensures the box remains intact in high-traffic or industrial areas, protecting internal components from physical damage.

Summary

Choosing the right material for a distribution box depends on application, location, and safety requirements. Metals like steel and aluminum are ideal for industrial, outdoor, or high-impact environments, while plastics such as polycarbonate and fiberglass are suitable for residential, indoor, or electrically insulating applications. Fire resistance, UV stability, corrosion resistance, and IP ratings are critical factors to ensure long-lasting, safe, and reliable performance of the electrical distribution system.
