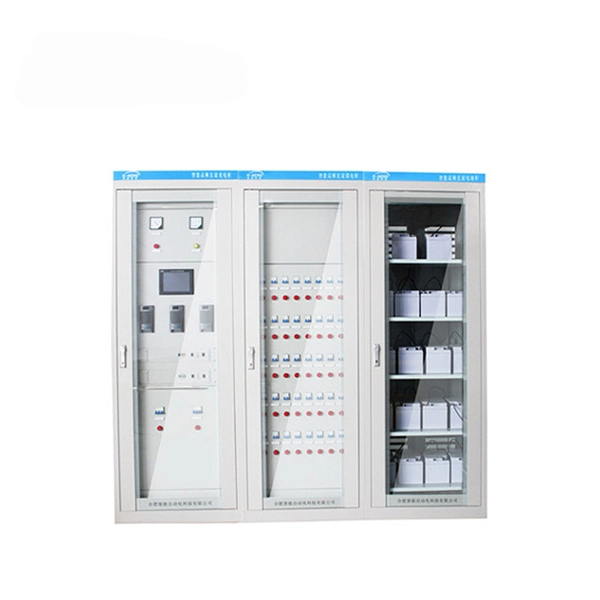

A relay protection system safeguards electrical power systems by detecting faults and initiating circuit breaker operations to isolate affected sections, ensuring equipment safety, system stability, and operational continuity.

Purpose of Relay Protection Systems

Relay protection systems are designed to detect abnormal electrical conditions such as overcurrent, short circuits, under-voltage, frequency deviations, or earth faults, and to isolate the faulty section quickly. This prevents damage to critical equipment like transformers, generators, motors, and transmission lines, reduces downtime, and protects personnel from hazards such as fires or electrocution.

Working Principle

A protective relay continuously monitors electrical quantities such as current, voltage, frequency, and power. Inputs are typically obtained via Current Transformers (CTs) and Voltage Transformers (VTs), which provide accurate real-time data. When a parameter exceeds a predefined threshold, the relay identifies it as a fault and sends a trip signal to the associated circuit breaker, disconnecting the faulty section from the network.

After fault clearance, the relay logs the event for analysis and may reset automatically or manually.

Types of Protective Relays

Protective relays can be classified based on operating principle or function: Based on Operating Principle: Electromechanical Relays: Use moving parts and electromagnetic forces. Static Relays: Use electronic components without moving parts. Numerical Relays: Digital relays with microprocessors, offering advanced protection, monitoring, and communication features.

Based on Function: Overcurrent Relay: Operates when current exceeds a preset limit. Differential Relay: Compares currents at two points; used for transformers and generators. Distance Relay: Operates based on impedance; commonly used in transmission lines.

Earth Fault Relay: Detects leakage currents to ground.

Over/

Under Voltage Relay: Protects against abnormal voltage conditions. Frequency Relay: Trips when frequency deviates from normal limits.

Applications

Relay protection systems are applied across power transmission, distribution, and industrial systems: Transmission Lines and Substations: Protect against faults and maintain system stability. Transformers: Prevent overheating, short circuits, and winding faults. Generators: Safeguard against overload, loss of excitation, and synchronization errors.

Motors and Industrial Equipment: Prevent damage due to overcurrent, single phasing, or earth faults.

Key Benefits

Fault Detection and Isolation: Minimizes damage and limits outage areas. System Stability: Maintains voltage, frequency, and power quality. Safety: Protects personnel and prevents hazards like arc flashes.

Operational Continuity: Keeps unaffected parts of the system online. Monitoring and Analysis: Logs events for preventive maintenance and system optimization. Relay protection systems have evolved from electromechanical devices to multifunctional numerical relays, offering faster response, higher accuracy, and integration with modern smart grid technologies, enhancing both reliability and security of power systems.
