An 8-core optical cable contains eight individual optical fibers, each protected by cladding and coatings, bundled together with strength members and an outer jacket, and terminated with connectors for signal transmission.Structure of an 8-Core Optical Cable
An 8-core optical cable consists of eight separate optical fibers, each designed to carry light signals independently. Each fiber has a core, typically made of high-purity glass or plastic, which transports the light, and a cladding layer with a lower refractive index to keep the light confined within the core through total internal reflection . Surrounding each fiber is a coating or buffer layer that protects it from physical damage and environmental factors . The fibers are bundled together and reinforced with strength members, often made of aramid yarn or glass-reinforced rods, to provide tensile strength and prevent stretching during installation . The entire assembly is enclosed in an outer jacket, which shields the fibers from moisture, abrasion, and other environmental hazards .
Connectors in an 8-Core Optical Cable

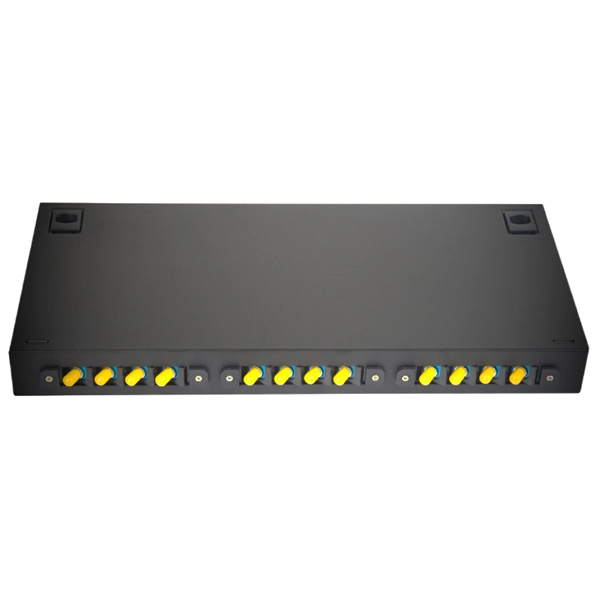

Each fiber in the cable can be terminated with connectors to interface with networking equipment. Common connector types include SC, ST, and LC, which are used in various patch cables such as SC-to-ST, LC-to-SC, or LC-to-LC configurations . These connectors ensure precise alignment of the fiber cores for efficient light transmission and minimal signal loss.
Applications
8-core optical cables are used in high-speed data networks, telecommunications, and building interconnects, where multiple fibers are needed in a single cable to support redundancy or increased bandwidth . The multi-core design allows for compact cabling while maintaining high performance and reliability.
Summary
In essence, an 8-core optical cable is a multi-fiber assembly with protective coatings, strength members, and an outer jacket, with each fiber terminated by connectors suitable for the intended network application. This design ensures efficient, reliable, and high-speed optical signal transmission across multiple channels simultaneously .
