What optical module

An optical module is a compact, hot-pluggable device that converts electrical signals into optical signals and vice versa, enabling high-speed data transmission over fiber optic networks.

Function and Working Principle

Optical modules operate at the physical layer of the OSI model, serving as the core component in optical fiber communication systems. Their primary function is optoelectronic conversion, allowing electrical signals from network devices to be transmitted as light through fiber optic cables and then converted back into electrical signals at the receiving end. The transmitting side uses a driver chip to process electrical signals, which then drive a laser diode (LD) or light-emitting diode (LED) to emit modulated optical signals.

The receiving side employs a photodetector in the Receiving Optical Sub-Assembly (ROSA) to convert incoming optical signals back into electrical signals, which are then amplified and output for further processing.

Structure and Components

An optical module typically consists of the following components: Transmitter Optical Sub-Assembly (TOSA): Contains the light source (LD or LED), optical interface, monitoring photodiode, and driver circuitry.

Receiver Optical Sub-

Assembly (ROSA): Includes a photodetector and preamplifier to convert optical signals to electrical signals. Functional circuits and main control board (PCBA): Manage signal processing and module operation. Housing and interfaces: Provide electrical and optical connections to network devices and fiber cables.

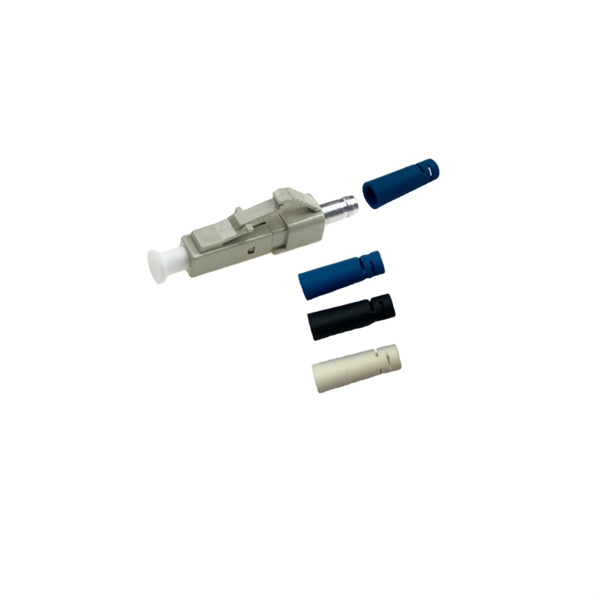

Dust caps and boots: Protect the optical interface and ensure secure connections, especially in SFP form factors.

Types and Form Factors

Optical modules come in various form factors and support different data rates, wavelengths, and transmission distances: SFP (Small Form-factor Pluggable): Up to 4. 25 Gbps, common in enterprise networks. SFP+: Up to 10 Gbps, suitable for data centers.

QSF

P (Quad SFP): 40 Gbps and beyond, used in high-performance computing.

CF

P (C Form-factor Pluggable): Designed for 100 Gbps and higher speeds. The choice of module depends on network requirements, balancing speed, distance, and cost.

Applications

Optical modules are widely used in switches, routers, servers, and high-bandwidth communication systems, enabling reliable long-distance data transmission with minimal loss and interference. They are essential in modern data centers, telecommunications networks, and high-performance computing environments. In summary, optical modules are critical for efficient, high-speed optical communication, providing seamless conversion between electrical and optical signals while supporting various network speeds and distances.
