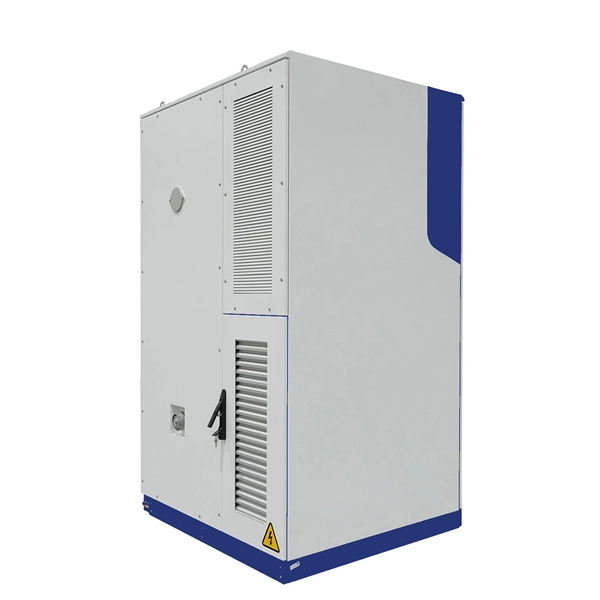

Grounding grid for construction distribution boxes

A proper grounding grid for distribution boxes ensures safety and system reliability by maintaining low-resistance paths to earth, using correctly sized conductors, parallel connections, and verified grounding points.

Key Principles

Grounding Purpose: The grounding grid provides a common reference point for electrical conductors, safely dissipates fault currents, and protects personnel and equipment from electrical surges or lightning strikes. Improper grounding can lead to equipment damage, electrical noise, and safety hazards. Wire Sizing and Materials: For distribution boxes, use a 5.

26 mm² (10 AWG) ground wire in the US or 6 mm² elsewhere. For connections between mounting plates and spindles, larger wires such as 16 mm² or 6 AWG may be required depending on cable length and number of spindles to maintain low resistance. Copper is preferred for its high conductivity and corrosion resistance.

Connection Method: Attach a ground wire from a threaded stud at the bottom of the distribution box to the mounting plate. Connect a second wire from the mounting plate to the central factory grounding point. Ensure all connections are clean, free of oxidation, and mechanically secure to minimize resistance.

Grounding Grid Layout: Use parallel grounding points rather than sequential links to avoid a single point of failure. Ground rods should be spaced appropriately (e.g., 50 ft apart for large grids) and connected with heavy copper conductors to form a mesh. Maintain proper clearance from fences or other structures, grounding them separately unless specified otherwise.

Resistance Requirements: The total ground resistance between system parts should be less than 0. 1 Ohm. When multiple paths exist (e.g., tool cable and ground wire), calculate the parallel resistance to ensure the combined resistance meets the requirement.

Soil and Environmental Considerations: Soil type significantly affects grounding resistance; sandy soils can increase resistance by up to 300% compared to clay soils. Regular testing is recommended, as resistance can change with moisture, corrosion, and temperature.

High-

Frequency and Surge Considerations: For lightning or high-frequency surges, minimize lead lengths and use flat straps where possible to reduce inductance and voltage buildup. Stranded conductors are preferred over solid wires for AC applications due to the skin effect, which reduces effective resistance. Verification and Maintenance: Measure ground resistance after installation and periodically thereafter.

Inspect connections for corrosion, oxidation, or mechanical loosening. Ensure all protective devices and surge arresters are properly connected to the grounding grid. By following these principles, a grounding grid for distribution boxes will provide reliable, low-resistance paths for fault currents, protect equipment, and ensure personnel safety.
