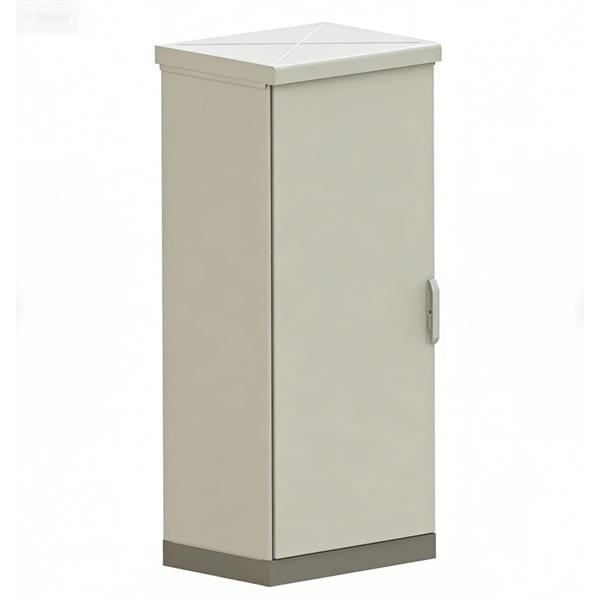

A control wiring distribution box safely distributes electrical power to multiple circuits while providing protection, isolation, and control for efficient and secure operation.Core Functions
A control wiring distribution box, also known as a distribution board or panel, serves as the central hub for electrical power distribution. It receives the main incoming supply and divides it into smaller circuits, allowing each circuit to be individually controlled and maintained without affecting the entire system . This ensures safe and efficient electricity flow to various devices, machinery, or building areas.
Safety and Protection
Distribution boxes house protective devices such as circuit breakers, fuses, and Residual Current Devices (RCDs) or Earth Leakage Circuit Breakers (ELCBs). These components:
- Prevent overloads by stopping excessive current flow.
- Protect against short circuits that could damage equipment or cause fires.
- Detect earth faults to prevent electric shocks and enhance user safety . Grounding and insulation within the box further reduce the risk of electrical hazards, ensuring the system operates reliably.
Control and Monitoring
In addition to power distribution, a control wiring distribution box may include switches, push buttons, relays, and indicators to manage and monitor circuits . In industrial applications, it can integrate with PLC systems, timers, and sensors to automate processes, such as starting or stopping motors, pumps, or other equipment based on specific conditions.
Organization and Maintenance
The box provides organized wiring terminals for secure connections, simplifying troubleshooting and system expansion . By isolating circuits, maintenance can be performed on one section without disrupting the rest of the system. Modern boxes often include extra space for future upgrades, preventing overloading and ensuring long-term reliability.
Material and Installation
Distribution boxes are made from plastic or metal. Plastic enclosures offer electrical insulation, corrosion resistance, and impact resistance, making them suitable for residential and commercial environments . Metal boxes, often steel or aluminum, are used in industrial settings requiring higher safety standards. Installation can be surface-mounted or concealed, depending on accessibility and aesthetic requirements .
Summary
A control wiring distribution box is essential for:
- Safe and efficient power distribution
- Circuit protection and isolation
- Monitoring and control of electrical systems
- Facilitating maintenance and future expansion By combining these functions, it acts as the nerve center of an electrical system, ensuring both safety and operational efficiency in homes, offices, and industrial facilities .
