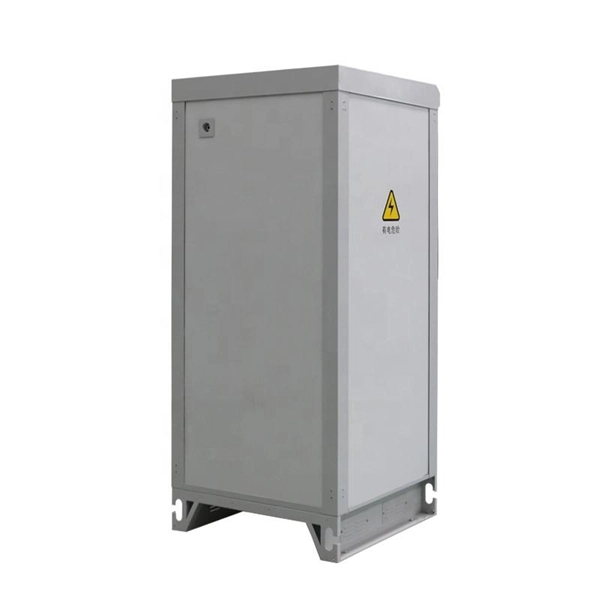

What level of explosion-proof distribution box is required

Explosion-proof distribution boxes must meet strict design, material, electrical, and certification standards to safely operate in hazardous environments. Design and Functional RequirementsExplosion-proof distribution boxes are engineered to contain internal explosions and prevent ignition of surrounding flammable gases, vapors, or dusts. The enclosure must be robust enough to withstand internal sparks, high temperatures, and pressure without propagating flames externally.

Key design elements include flameproof (Ex d) and increased safety (Ex e) chambers, proper strain relief for connectors, and clearly marked branch circuits to prevent misuse. Electrical schematics and circuit protection devices must be carefully selected to match the current-carrying capacity of connectors.

Material Specifications

Materials must be mechanically strong, corrosion-resistant, and non-flammable. Common choices include stainless steel (Baosteel 304 or higher), aluminum, or GRP. The enclosure thickness should typically be no less than 4 mm for stainless steel boxes.

All fasteners should be galvanized, and internal wiring should use insulated conductors with proper casing and bundling to maintain safety and prevent accidental contact.

Certification and Standards

Compliance with international and national standards is mandatory. Key certifications include: ATEX: Ensures safety in hazardous EU environments.

IEC

Ex: Confirms global compliance for explosive atmospheres.

NEM

A: Defines enclosure protection levels for Class I and Class II hazardous locations. GB7251: Chinese national standard for distribution box design and production. Boxes must be rated for Class I, Division 1 (flammable gases) and Class II, Division 1 (combustible dusts), with appropriate protection types such as Ex d (flameproof) or Ex i (intrinsically safe).

Installation and Operational Requirements

Cable entry: Cables must pass through packing glands or interlocked plugs to maintain explosion-proof integrity. Mechanical strain relief: All connectors must be supported to prevent stress on wiring. Short-circuit protection: Each branch circuit requires compatible automatic circuit-interrupting devices.

Maintenance: Regular inspections are essential, typically at least annually, with more frequent checks in high-risk areas to ensure seals, wiring, and components remain intact. Environmental considerations: Equipment must withstand extreme temperatures, humidity, and dust exposure, as demonstrated in projects like Tilenga and Fushilai Pharmaceutical.

Practical Considerations

Customization: Distribution boxes should be tailored to the specific hazardous area classification and operational requirements. Vendor collaboration: Early coordination with suppliers, project owners, and design institutes ensures proper integration, long-term reliability, and maintenance support. Energy efficiency and low maintenance: Well-specified boxes reduce operational costs and minimize dangerous service interventions.

By adhering to these detailed requirements, explosion-proof distribution boxes provide safe, reliable, and compliant power distribution in hazardous environments, protecting both personnel and equipment from potential explosions.
