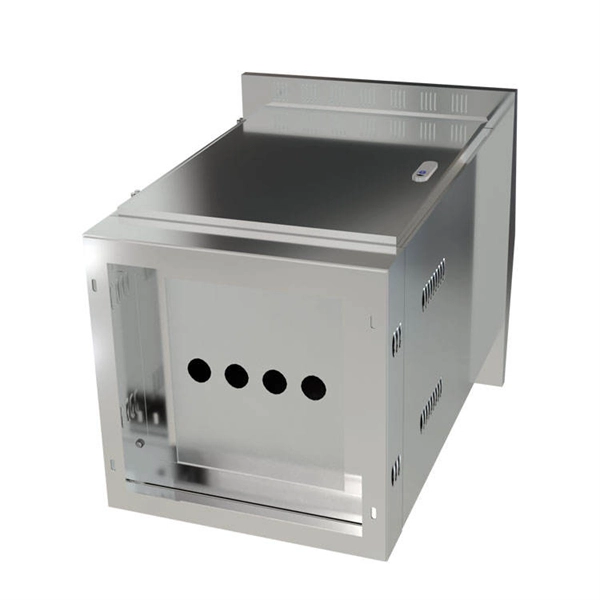

AT distribution box floor installation

Proper floor installation of an AT distribution box requires secure mounting, correct wiring, grounding, and compliance with safety standards to ensure reliable operation and maintenance access.Site Selection and Preparation

Choose a dry, well-ventilated, and accessible location close to the power supply to minimize voltage drop and ensure safety ( ). Avoid areas prone to moisture, corrosive atmospheres, or heavy foot traffic. For concrete or screed floors, ensure the substrate can support the box's weight plus internal components ( ). Mark the installation location carefully, checking for underfloor services such as plumbing or heating systems ( ).

Mounting the Distribution Box

For floor installation, use pedestals, skids, or mounting brackets suitable for the box size and weight ( ). Secure the box with anchor bolts, chemical anchors, or heavy-duty screws depending on the floor material. Ensure the box is level and flush with the finished floor using a spirit level, and temporarily cover the opening to prevent debris during concrete or screed pouring ( ). For vibration-prone areas, consider isolation pads to protect internal wiring ( ).

Wiring and Cable Management

Turn off the power supply before wiring. Use high-temperature resistant copper wires with cross-sectional areas matching the load current ( ). Pre-plan cable entry points and use strain reliefs and gland plates to prevent conductor stress ( ). Arrange heavier components lower in the box to improve stability and reduce stress on fasteners ( ). Maintain neat wiring with proper labeling and separation of circuits for easy maintenance ( ).

Grounding and Safety

Ensure the metal enclosure, internal panels, and electrical appliances are properly grounded ( ). Connect the protective neutral wire reliably through a terminal board and install a leakage protector for additional safety. Verify that all cable inlets and cover joints are sealed to maintain ingress protection, especially in areas exposed to moisture ( ).

Commissioning and Maintenance

Before energizing, perform visual inspections and multimeter tests to confirm correct wiring and grounding ( ). Maintain clear working space around the box for routine operations, and schedule regular inspections and maintenance to ensure long-term reliability ( ). Label all devices and consider modular designs for easier future upgrades ( ). By following these steps, a floor-mounted AT distribution box can be installed safely, securely, and in compliance with relevant standards, ensuring reliable operation and ease of maintenance.
