How to use the small square frame of a fiber optic connector

The small square frame of a fiber optic connector, such as an SC or LC connector, is designed for push-pull or latch-style connections to adapters, allowing secure, low-loss fiber connections in patch panels or equipment.

Understanding the Connector Frame

The square frame you see on SC or LC connectors serves as the housing that aligns the ferrule (the small cylindrical tip holding the fiber) with the mating adapter or another connector.

S

C connectors typically use a push-pull mechanism, while LC connectors use a push-and-latch design for secure connections in high-density setups. The frame ensures proper alignment, prevents fiber bending, and allows easy insertion and removal without damaging the fiber.

Steps to Use the Connector

Inspect the Connector and Adapter Before connecting, check that the ferrule and adapter are clean. Dust or debris can cause signal loss or damage. Use a fiber cleaning tool or lint-free wipes if necessary.

Align the Connector Hold the connector by its square frame.

For S

C connectors, align the flat sides with the adapter slot.

For L

C connectors, ensure the latch is oriented correctly to fit the adapter. Insert the Connector Push the connector straight into the adapter until you feel it click (SC) or latch (LC). Avoid twisting or forcing it, as this can damage the ferrule or fiber.

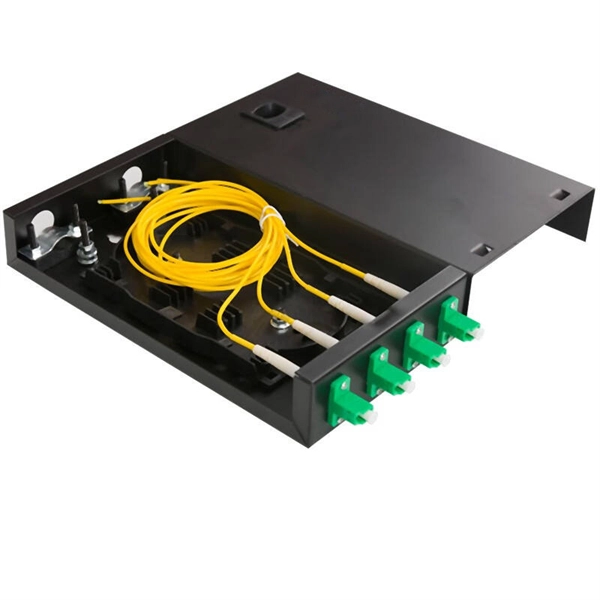

Secure Duplex Connections If using duplex connectors, the small square frames often clip together with a duplex clip to maintain proper spacing and alignment in patch panels. Disconnecting To remove, press the latch (LC) or pull straight out (SC) while holding the square frame. Never pull on the fiber cable itself, as this can break the fiber or loosen the ferrule.

Best Practices

Always handle connectors by the square frame, not the fiber cable. Keep connectors capped when not in use to prevent contamination. Use proper cleaning tools to maintain low insertion loss and high signal quality.

For high-density panels, consider using an LC extraction tool to safely remove tightly packed connectors. By following these steps, the small square frame of SC or LC fiber optic connectors can be used effectively to ensure secure, reliable, and low-loss connections in both single-mode and multimode fiber networks.
