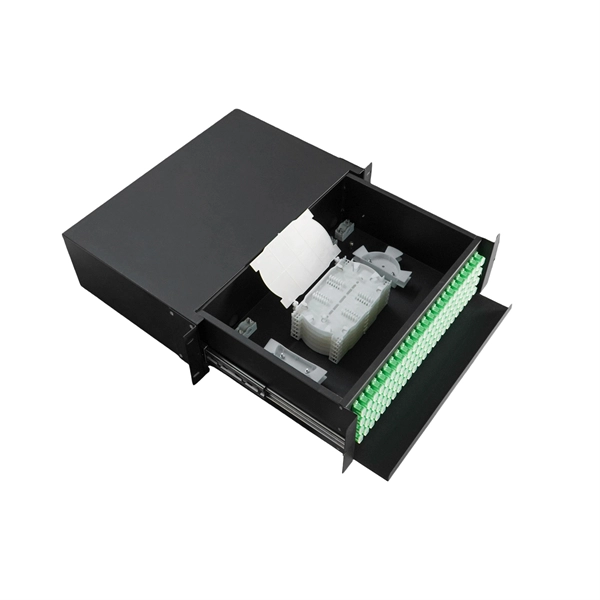

Internal Structure of Fiber Optic Cable Splice Box

A fiber optic cable splice box houses splice trays, fiber management systems, cable entries, and connector modules to organize, protect, and distribute optical fibers efficiently.

Core Components

Splice Tray: The splice tray is the central component of the splice box, designed to hold and protect fiber splices. It typically features grooves or channels to secure fibers using splice sleeves, preventing bending or damage. Modern trays often include integrated splice holders, couplings, and pigtails, facilitating easy installation and maintenance.

Fiber Management System: This system organizes and protects fibers within the box. It includes spooling devices, routing guides, and tie-downs to manage excess fiber slack, maintain bend radius, and prevent mechanical stress that could degrade signal quality. Cable Entries: Ports on the splice box allow optical fibers to enter and exit.

These entries are sealed with rubber grommets or other protective seals to prevent moisture, dust, and contaminants from entering the enclosure, ensuring environmental protection for both indoor and outdoor installations. Splitter Modules: In boxes designed for distribution, splitter modules divide optical signals into multiple fibers, enabling connections to several endpoints. These modules are essential in passive optical networks (PON) and other multi-user fiber deployments.

Support Frame and Optical Fiber Placement Devices: The support frame provides structural integrity, while fiber placement devices store connectors and excess fiber in an orderly manner. This ensures easy access for maintenance and reduces the risk of accidental fiber damage.

Additional Features

Strain Relief and Cable Fixing Devices: These components secure incoming and outgoing cables, reinforcing the fiber and preventing stress at splice points. Heat shrink sheaths or clamps are commonly used to anchor cables to the support frame. Environmental Protection: High-quality splice boxes are made from durable materials such as polycarbonate, ABS, or stainless steel, offering impact resistance, chemical stability, and temperature tolerance.

Many boxes are flame-retardant, waterproof, and rated for outdoor or underground use, ensuring long-term reliability. Front Panel and Connectors: The front panel may include fiber or copper connectors (e.g., RJ45) for signal transmission. Removable panels allow technicians to access splices and connectors for installation or maintenance.

Summary

The internal structure of a fiber optic splice box is designed to protect, organize, and distribute optical fibers while maintaining signal integrity. Key elements include splice trays, fiber management systems, cable entries, splitter modules, support frames, and strain relief mechanisms. The combination of these components ensures durability, ease of maintenance, and reliable network performance in both indoor and outdoor environments.
