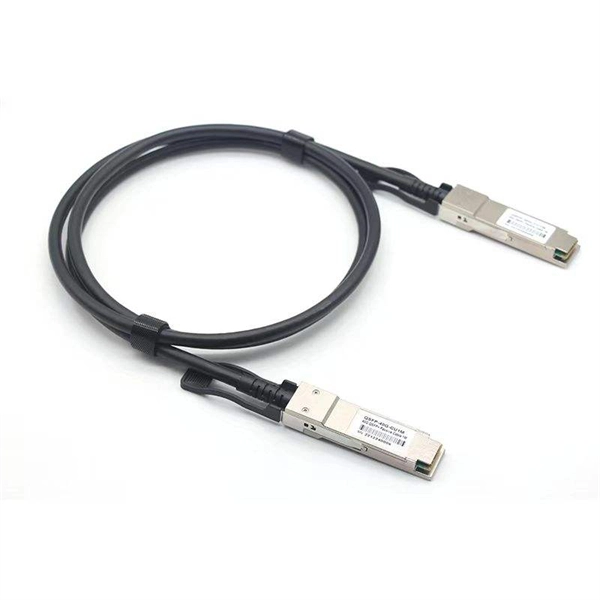

Optical Bridge and Optical Module

An Optical Bridge Module is a device that converts electrical signals to optical signals and vice versa, enabling high-speed communication between network devices and fiber optic networks.

Overview

An Optical Bridge Module functions as a critical interface in optical communication systems, bridging electrical and optical domains. It converts electrical signals from devices like switches or routers into optical signals for transmission over fiber, and converts incoming optical signals back into electrical signals for processing at the receiving end. This conversion is essential for long-distance, high-bandwidth communication.

Key Components

Optical bridge modules typically include: Optical Transmitters (TX): Convert electrical signals into optical signals using lasers such as VCSELs or DFB lasers. Optical Receivers (RX): Convert incoming optical signals into electrical signals using photodetectors like PIN or APD, amplified by transimpedance amplifiers (TIA),. Circuit Boards and Lenses: Facilitate signal modulation, alignment, and coupling to fiber optics.

Types and StandardsSFP (Small Form-factor Pluggable) Modules: Interchangeable optical modules supporting speeds from 1 Gbps to beyond 16 Gbps, compatible with multi-mode or single-mode fibers, and often used in data centers and enterprise networks. Fiber-to-PIC Connectors (e.g., Corning GlassBridge™): These modules provide high-density, wafer-based fiber-to-photonic integrated circuit (PIC) interfaces, supporting Co-Packaged Optics (CPO) and Near-Packaged Optics (NPO) architectures for scalable, high-channel-count systems.

Applications

Optical bridge modules are widely used in: Data Centers: High-speed interconnects between servers, switches, and storage systems. Telecommunications: Long-distance fiber optic transmission.

High-

Performance Computing: Low-latency, high-throughput networks using standards like InfiniBand.

Next-

Generation Photonics: Integration with PICs for AI and high-bandwidth applications, enabling compact, high-density optical connections. AdvantagesHigh-Speed Transmission: Supports multi-gigabit to terabit data rates. Scalability: Modular design allows easy upgrades and high-density deployment.

Reliability: Precision alignment and standardized interfaces ensure consistent performance. Flexibility: Compatible with various fiber types and network architectures. In summary, an Optical Bridge Module serves as the essential link between electronic devices and optical networks, enabling efficient, high-speed, and scalable communication across modern data and telecommunication infrastructures.
