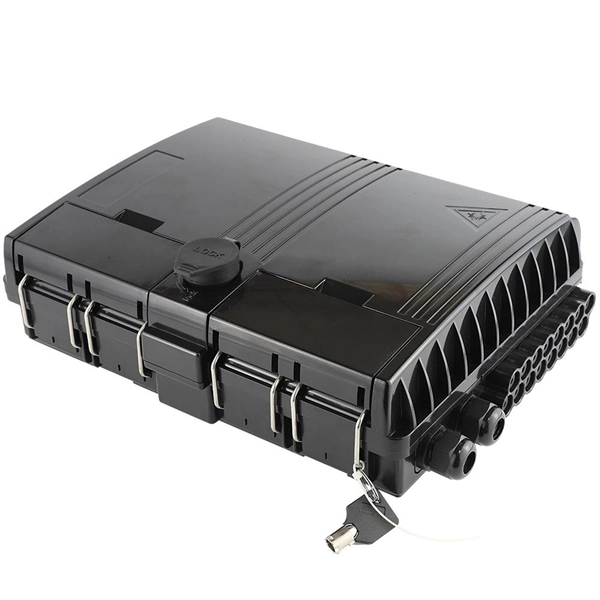

Dehumidification Configuration for Distribution Box

Effective dehumidification of a distribution box can be achieved using either enclosure heaters or intelligent dehumidifiers, often combined with heat dissipation measures to maintain internal dryness and prevent moisture-related failures.

Importance of Dehumidification

Distribution boxes, including terminal boxes, mechanism boxes, and switch cabinets, are prone to high humidity due to their compact internal spacing. Excess moisture can reduce insulation performance, cause electrical flashover, promote corrosion, and encourage mold growth, all of which compromise equipment reliability and service life. Proper dehumidification ensures safe, stable, and long-lasting operation of electrical components in humid environments.

Dehumidification Methods1.

Enclosure Heaters

Enclosure heaters work by raising the internal temperature of the distribution box, which lowers relative humidity and prevents condensation. These heaters are often paired with humidity control systems that automatically activate when humidity exceeds a set threshold and deactivate once acceptable levels are reached. While this method is easy to install and effective at preventing condensation, it does not remove existing moisture from the air, and condensation can reoccur if the heater stops working.

2.

Intelligent Semiconductor Dehumidifiers

Intelligent dehumidifiers actively circulate humid air inside the cabinet, directing it to a condensing surface where moisture is separated and expelled. This method not only reduces humidity but also removes existing moisture, maintaining a consistently dry environment. These devices are equipped with automatic humidity control, starting and stopping based on real-time measurements, and are particularly effective in high-humidity regions or cabinets with heat-generating components.

3.

Integrated Dehumidification and Heat Dissipation Devices

Advanced configurations combine dehumidification with heat dissipation, using motors, fans, and transmission shafts to circulate air, remove moisture, and dissipate heat simultaneously. This approach ensures that both humidity and temperature are controlled, preventing condensation and overheating, which is especially useful for distribution boxes in basements, outdoor environments, or other humid locations. 4.

Moisture Absorbents

For smaller distribution boxes, moisture absorbents can be installed to passively capture water vapor. However, their limited capacity requires regular replacement, and they are less suitable for large or high-voltage cabinets due to saturation and maintenance challenges.

Configuration Recommendations

Select the method based on cabinet size and environmental conditions: small boxes may use heaters or absorbents, while larger or high-humidity cabinets benefit from intelligent dehumidifiers or integrated devices. Ensure proper air circulation: dehumidifiers should have a clear path for air to flow to the condensing surface. Combine with heat dissipation: integrating fans or heat dissipation devices prevents overheating and enhances moisture removal.

Automate control: use humidity sensors to trigger dehumidification devices, maintaining optimal internal conditions without manual intervention. By implementing these measures, distribution boxes can maintain low internal humidity, prevent insulation degradation, and extend the service life of electrical components.
