Switch Optical Module Fiber Optic Transceiver

A fiber optic transceiver (SFP or similar) plugs into a switch's SFP slot, converting electrical signals to optical signals for transmission over fiber, with proper connector and cable alignment being essential for reliable communication.

Understanding Fiber Optic Transceivers

A fiber optic transceiver is a compact module that both transmits and receives data over optical fibers. It converts electrical signals from a switch or router into light pulses for fiber transmission and converts incoming light pulses back into electrical signals for the device. Common transceiver types include 1G/10G SFP+, 25G SFP28, 40G/100G QSFP+, and 200G/400G QSFP-DD, each designed for specific network speeds and distances.

Connector Types and Compatibility

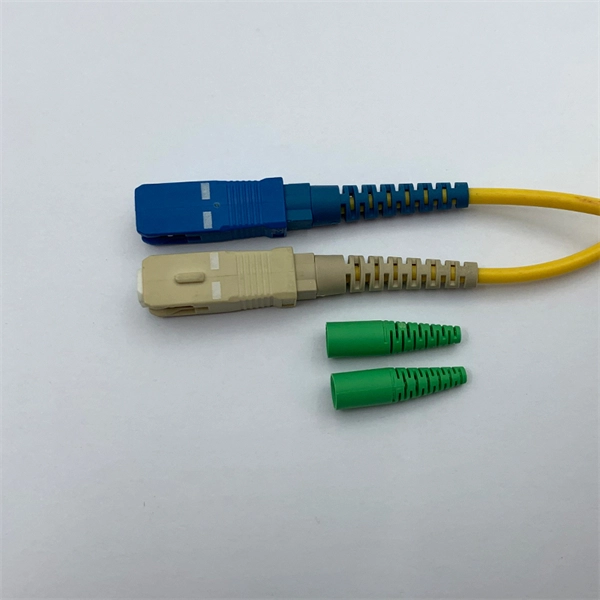

The connector on the transceiver determines how the fiber physically connects. Common types include LC, SC, and MPO, which align the fiber core with the transceiver's optical transmitter and receiver. Even if two transceivers are electrically compatible, a connector mismatch can prevent proper connection without adapters.

Ensuring the transceiver's connector matches the fiber patch cable is critical for low insertion loss and high signal quality.

Installation Steps

Power Off or Hot-Swap Check: Ensure the switch is powered off unless it supports hot-swapping. Static Precautions: Ground yourself to prevent static damage. Insert the Transceiver: Align the transceiver with the SFP slot on the switch and gently push until it clicks into place.

Connect Fiber Cable: Attach the fiber optic cable to the transceiver, taking care not to bend or damage the fiber. Ensure the correct orientation for duplex or single-fiber connections. Verify Operation: Power on the switch (if powered off) and check the transceiver's LED indicators for proper operation.

Cable Types

Two main cable types interface with SFP modules: Direct Attach Copper (DAC): Twin-axial copper cables with SFP connectors, suitable for short distances (up to 10 meters) within racks. Fiber Optic Patch Cables: Single-mode or multimode fiber cables that match the transceiver's connector type, used for longer distances.

Best Practices

Keep connectors clean to avoid signal degradation. Verify transceiver and switch compatibility, including speed and protocol support. Use adapters only when necessary to bridge connector mismatches.

Follow manufacturer guidelines for insertion and removal to prevent damage. By following these steps and ensuring proper connector and cable selection, a fiber optic transceiver can reliably link a switch to the optical network, enabling high-speed, low-latency communication across data center or enterprise networks.
